SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Axis Body Brand: EPOMAKER

Backlight Type: Multicolor

Battery Included: Yes

EPOMAKER Model: G84 HE

Full Size keyboard: No

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 84 Keys

Keycup material: PBT plastic

Keycup printing: Doublshot

Language: English

Operation Style: Mechanical

Package: Yes

Style: Standard

Switches Hot swap: Yes

Type: 2.4Ghz Wireless

Wrist Support: No

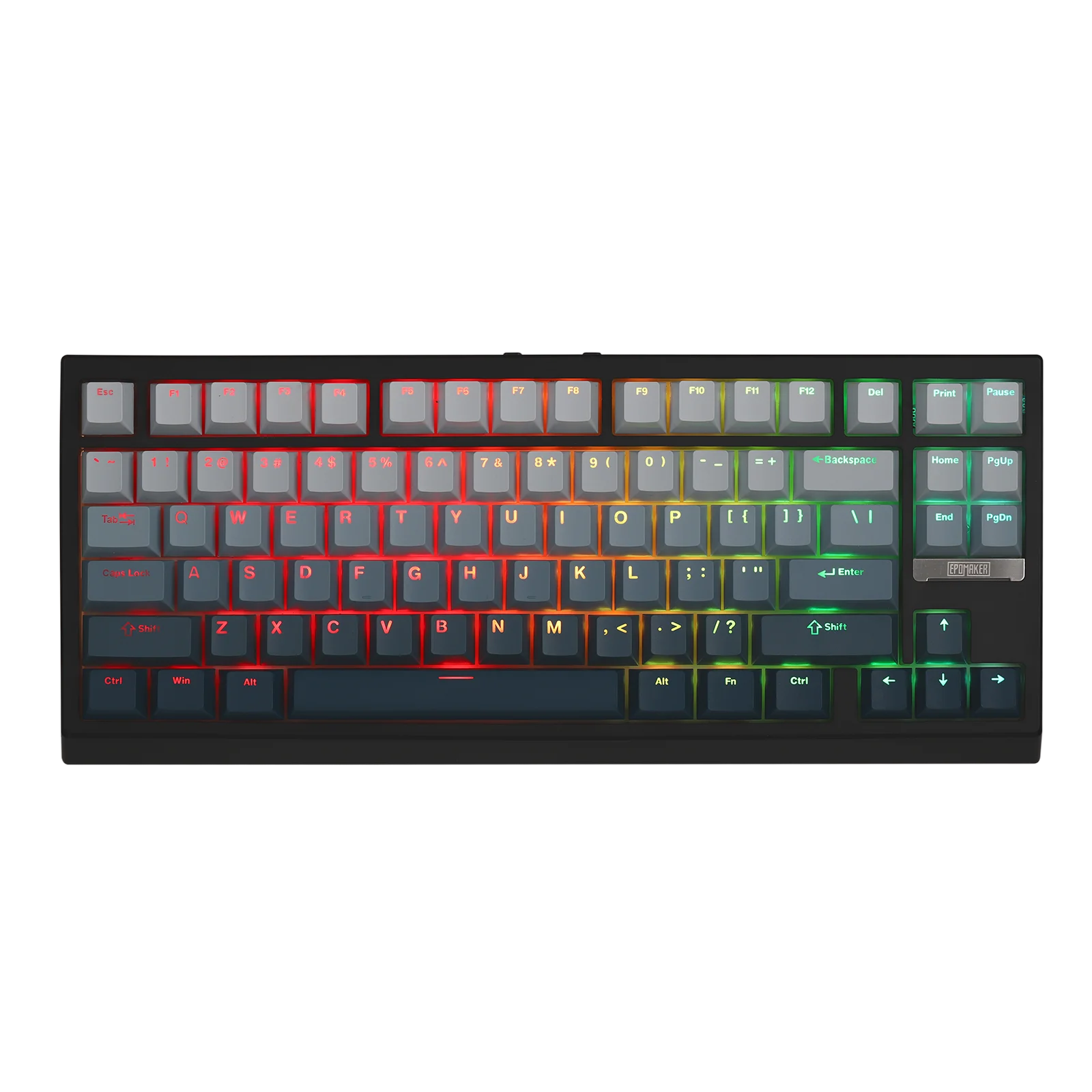

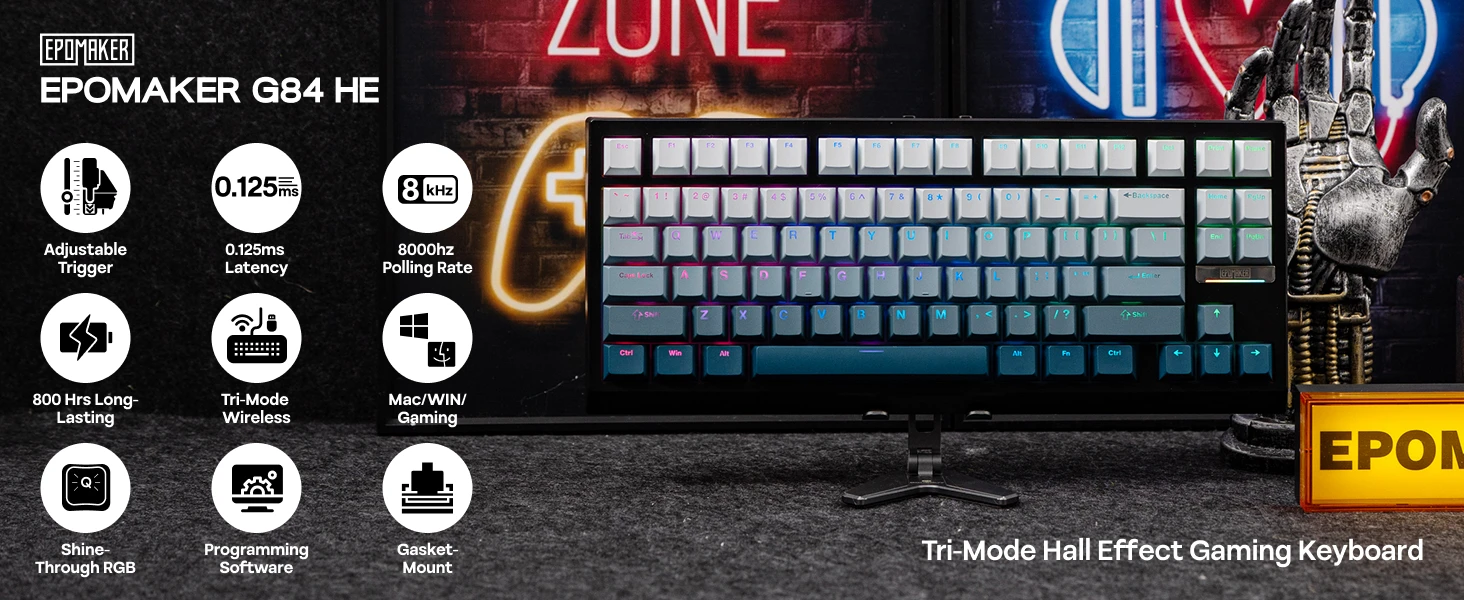

EPOMAKER G84 HE 75% ANSI US Layout Gasket Wired/BT/2.4Ghz Wireless Hall Effect Magnetic Mechanical Keyboard 8K Polling & 8000mAh

The Epomaker G84 HE delivers precision for gamers, visual enthusiasts, professionals & magnetic lovers with 0.01mm RT, DKS/SOCD & tri-mode, which features shine-through keycaps and Win/Mac compatible.

G84 HE offers gradient, luminous keycaps, ultra-precise magnetic switches, and tri-mode connectivity for gamers and style-conscious enthusiasts

-75% Compact Layout for Performance & Space
-Custom Epomaker Duskrise Magnetic Switches
-Gradient Green Shine-Through PBT Keycaps
-Dynamic RGB Effects with Underglow Lightbars
-0.01mm Precision with DKS & SOCD Support

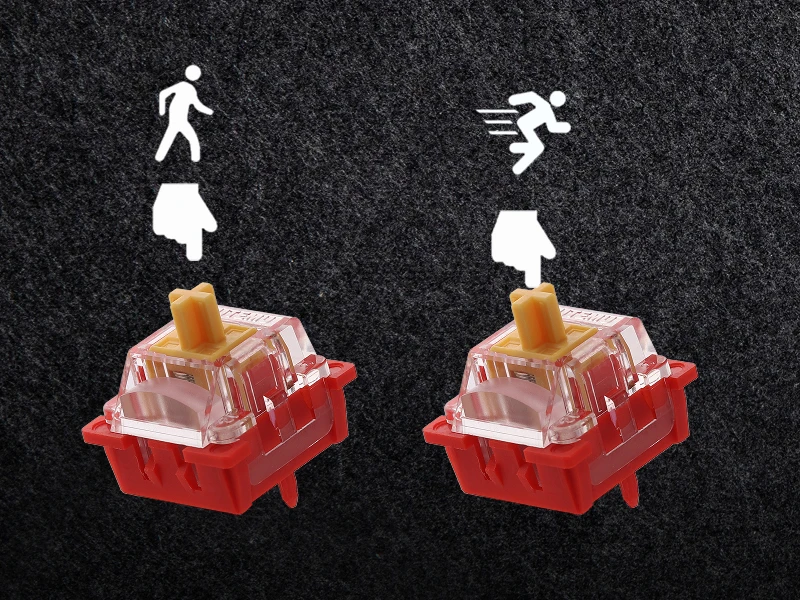

Fast Trigger & Zero Dead Zone

Achieve unmatched fluidity and precision with the G84 HE Hall Effect Keyboard. Get every flick of keystroke delivered instantly with actuation as sensitive as per 0.01mm, with trigger and release travel adjustable from 0.1 to 3.3mm with zero dead zone.

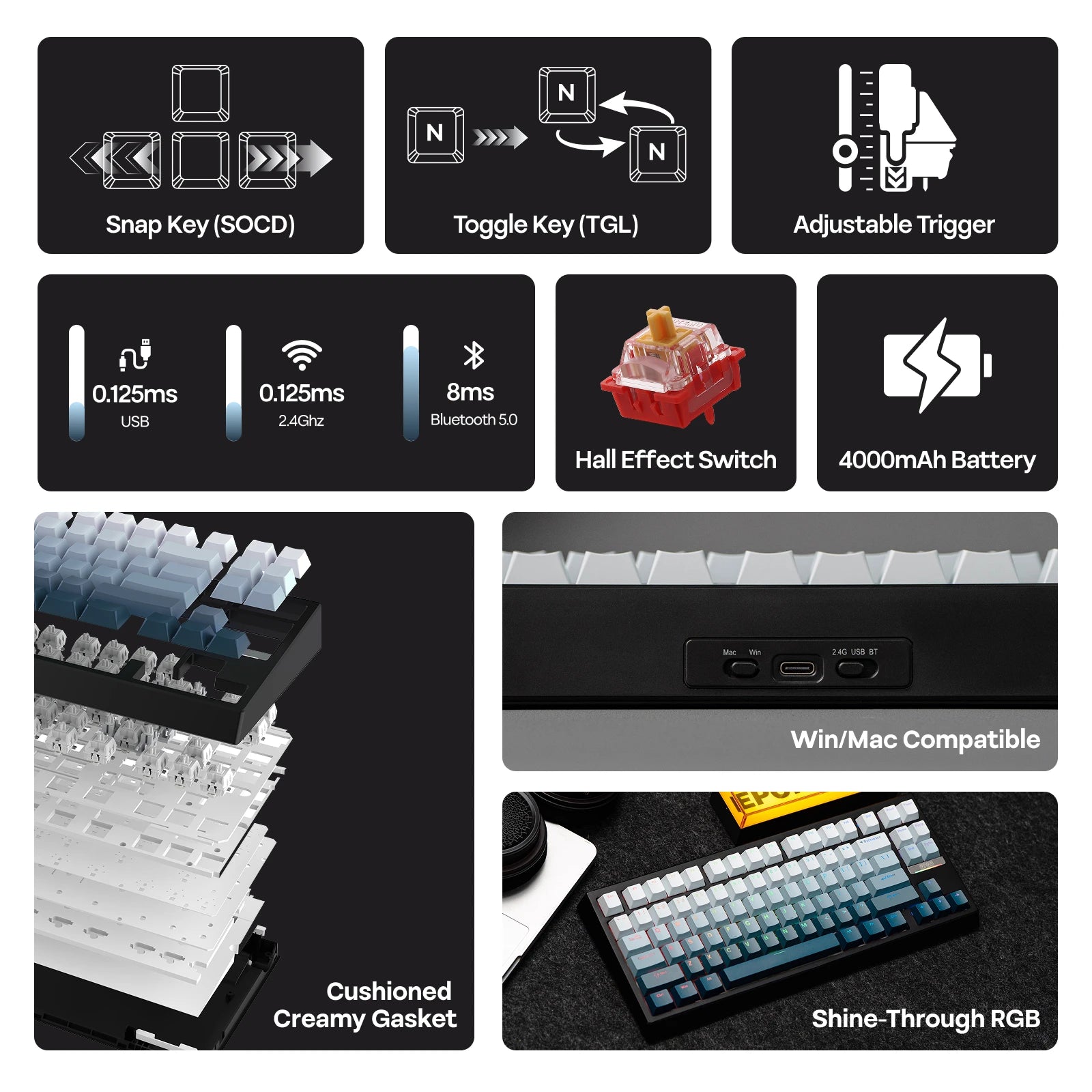

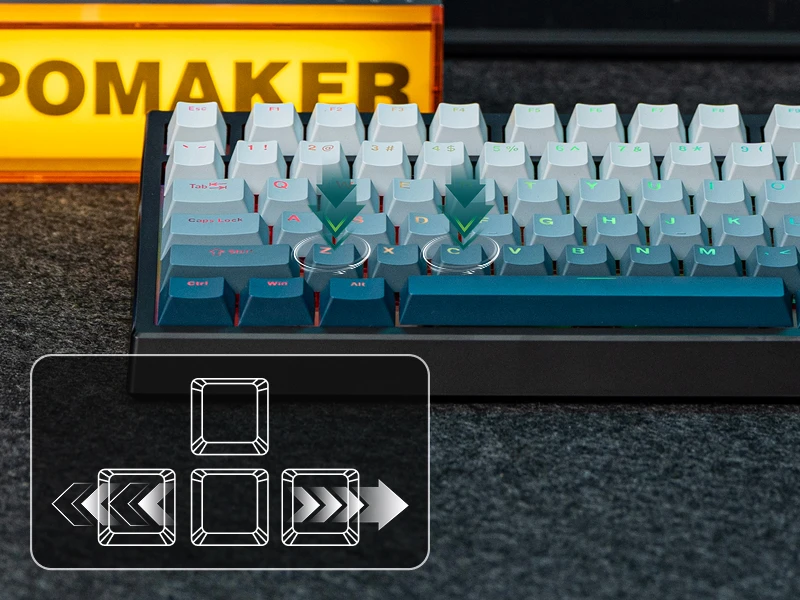

Snap Key (SOCD) & DKS

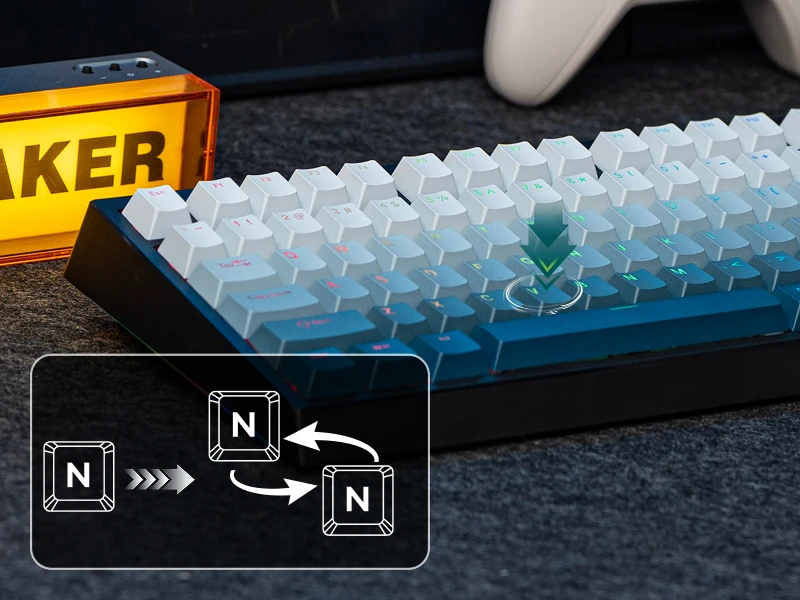

Tired of neutral block or accidental stops in games with conflicting inputs? The SOCD logic of our G84 HE gaming keyboard intelligently prioritizes the last input, for hyper-precise movement like instant air dashes or counter-strafe. While DKS (Dynamic Key Rollover) gives you unadulterated control, where one keypress can execute up to 4 commands based on how far you press it.

8K Hz Polling & 256K Scan Rate

Equipped with lubed magnetic switches and E-sport level circuit design, the G84 HE gaming keyboard boasts a 8000hz polling and a 256K scan rate, giving you the edge needed for fast paced gaming. The elimination of physical contact in the trigger of hall effect switches, slashing the latency of G84 HE to a mere 0.125ms, significantly boosts speed and precision in control.

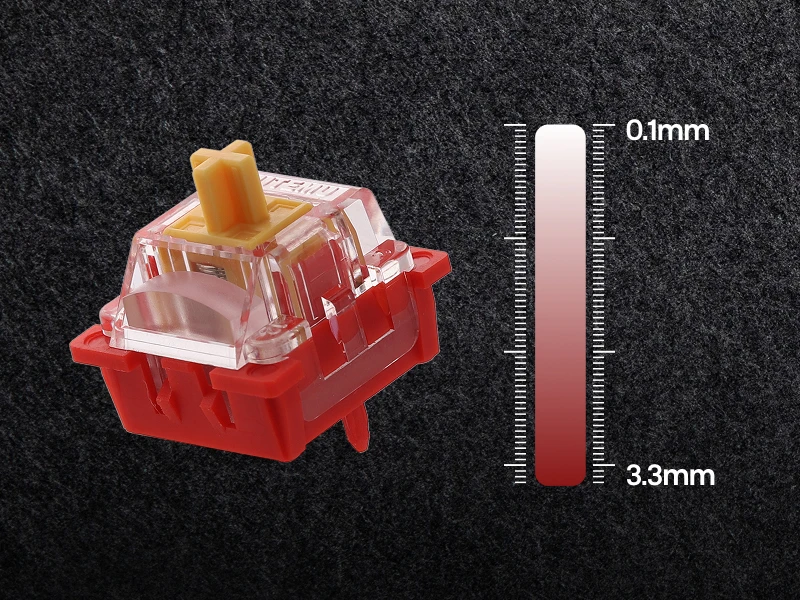

0.1 to 3.3mm Adjustable Actuation

Whether you are competitive for FPS, MOBA and Rhythm games, or want to level up on typing speed, the programmable actuation and end travel of G84 HE magnetic keyboard will be the helper you need. With the EPOMAKER software, functional on WIN and Mac system, trigger and release of input can be as precise as 0.01mm of finger movement.

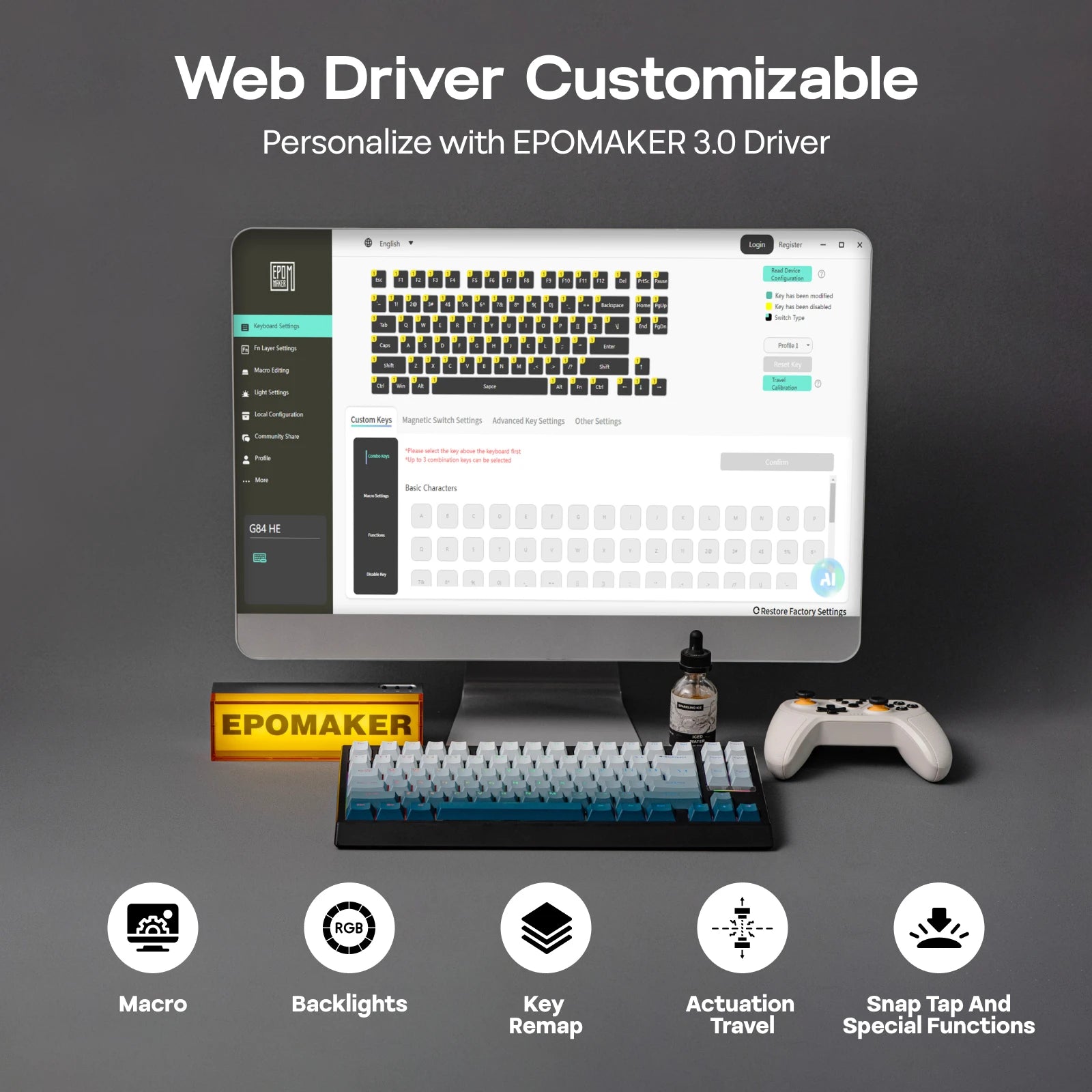

Custom Driver (Mac/WIN)

Customize key functions, actuation travel, macro or backlight across devices and OS systems with the EPOMAKER software. Record macros to automate repetitive actions, or try out the advanced functions such as SOCD, DKS, MT and RT. Design personalized backlight effect, tailor keyboard sensitivity or remap key layout, all is available with real-time visual feedback.

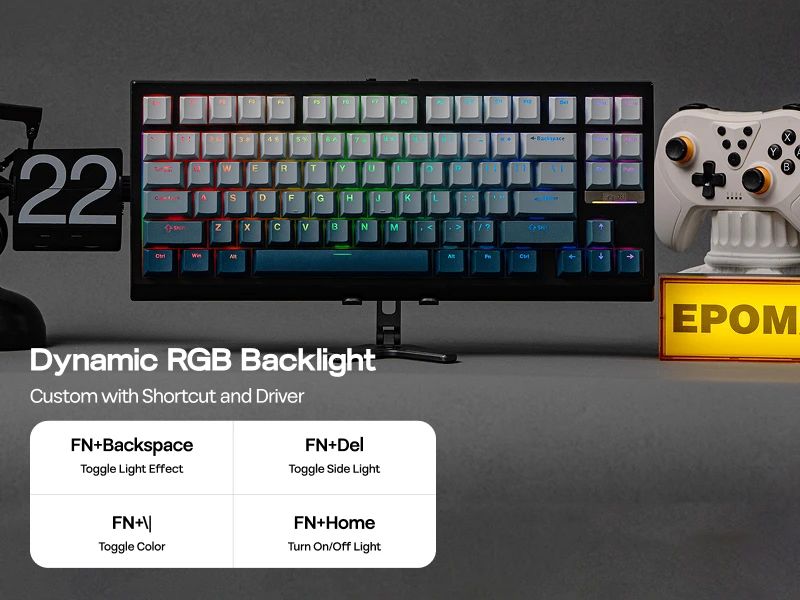

Shine-Through RGB Backlit

Bath in the dynamic RGB backlight of G84 HE that response instantly to all your gaming actions, while your fingers glide effortlessly over durable PBT keycaps with shine-through legends that remain crisp and clear for years. With double-shot technique, these greasy-resistant keycaps adopt front-printed transparent letters to be bright and clear without a lamp or other light source. No more fumbling on keyboard at dark hours, all keys will be clear and easy to read in premium condition. Unlock a world of customization and visual flair with the true backlit G84 keyboard, for a boost in productivity and gameplay style.

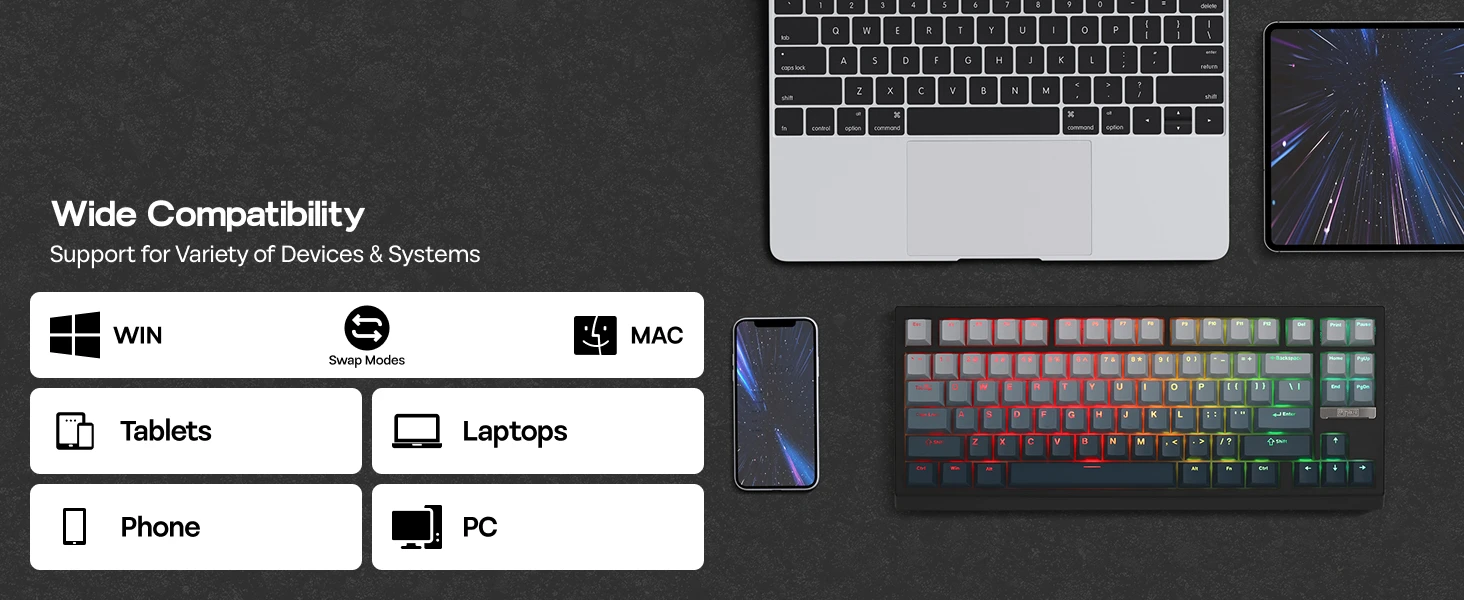

Tri-Mode Wireless for Mac/WIN

Experience ultimate flexibility with our G84 HE Wireless Gaming keyboard with 3 connection modes and a unique 80% layout. Modern sleek and versatile compatibility, G84 HE takes it all into consideration in designing by featuring an intuitive tri-mode control on top and a built-in hidden storage space for 2.4Ghz receiver under its kickstand, which is 2-stage adjustable to offer comfortable typing angle in varied scenarios. Whether you prefer PC, Android tablet, Mac laptop or phone, enjoy the stable connection G84 offers free from the clutter of wires

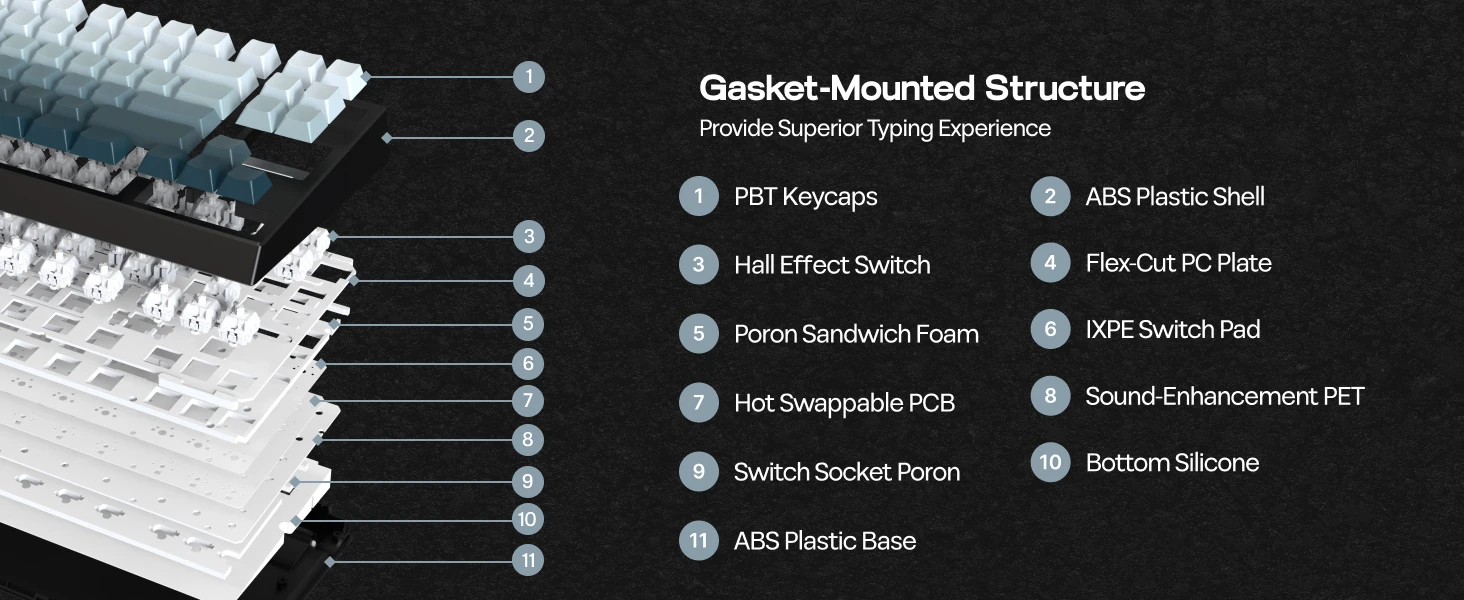

Creamy Gasket Keyboard with Sound-Dampening

Take delight in the rich, creamy sound our G84 HE Gasket-Mount Keyboard delivers, for enhanced acoustic and typing experience significantly differ from traditional tray-mount keyboard. The unique Gasket-Mount introduces layers of buffer for a soft landing every time a key is pressed, contributing to a mellow and switch-focused typing sound quieter than non-padded ones. With 5 layers of Poron, IXPE, Silicone and Sound Enhancement Pad as further dampening materials, the acoustic is further enhanced to be creamy and buttery smooth, giving you the immersive tune needed for immersive gaming and productive work

Specifications:

Brand: EPOMAKER
Model: G84 HE

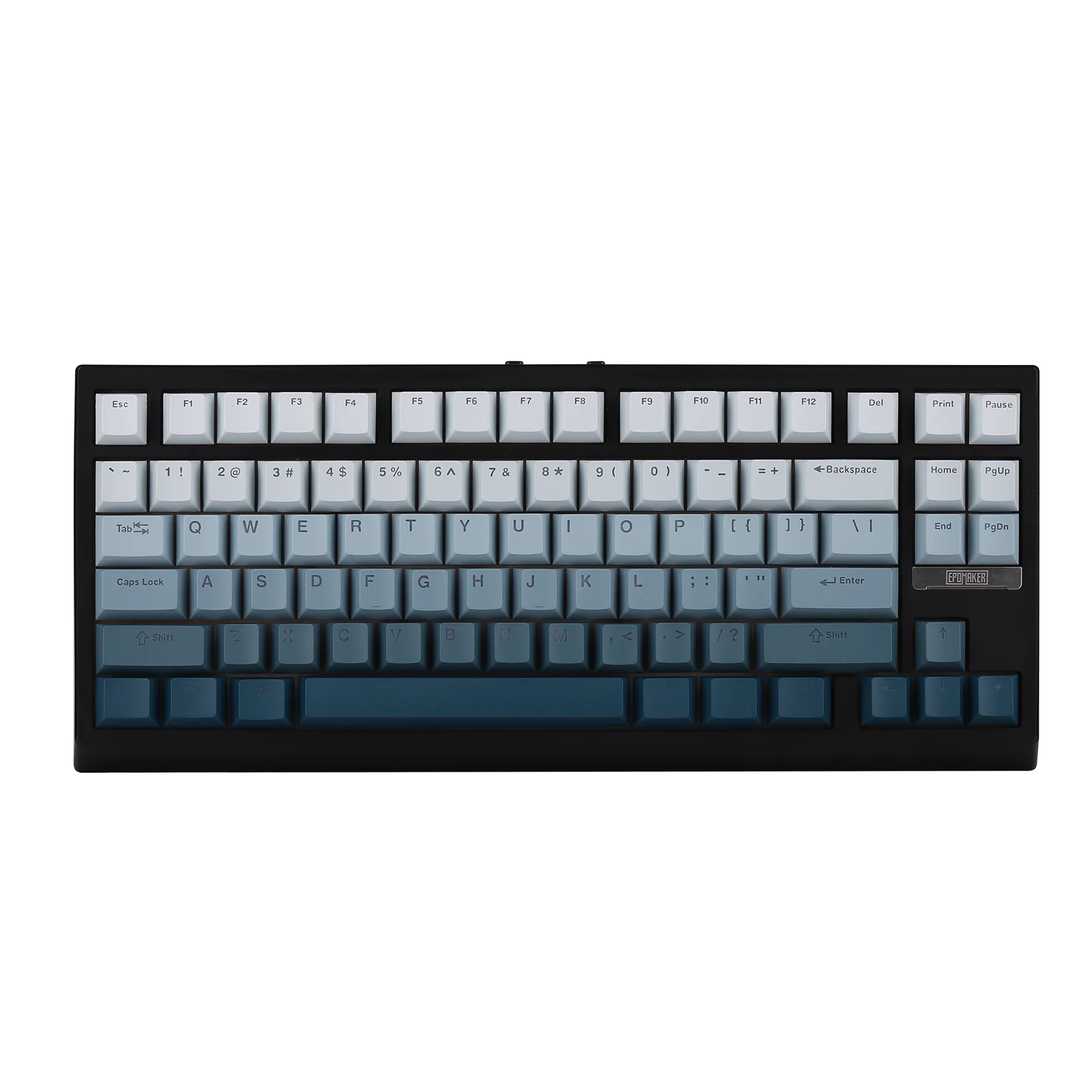

Layout: 75% Layout, QWERTY ANSI US Layout
Number of Keys: 84 Keys
Battery: 8000mAh (2*4000mAh)

Battery Life: 30 Hours of Continued Use with Backlight On, and 160 Hours of Continued Use with Backlight Off. It lasts 800 hours in stand-by mode.
Connectivity: 2.4Ghz Wireless/Bluetooth/USB A-C
Compatibility: Mac/WIN/Android. (Physical Switch for Mac/WIN swap)

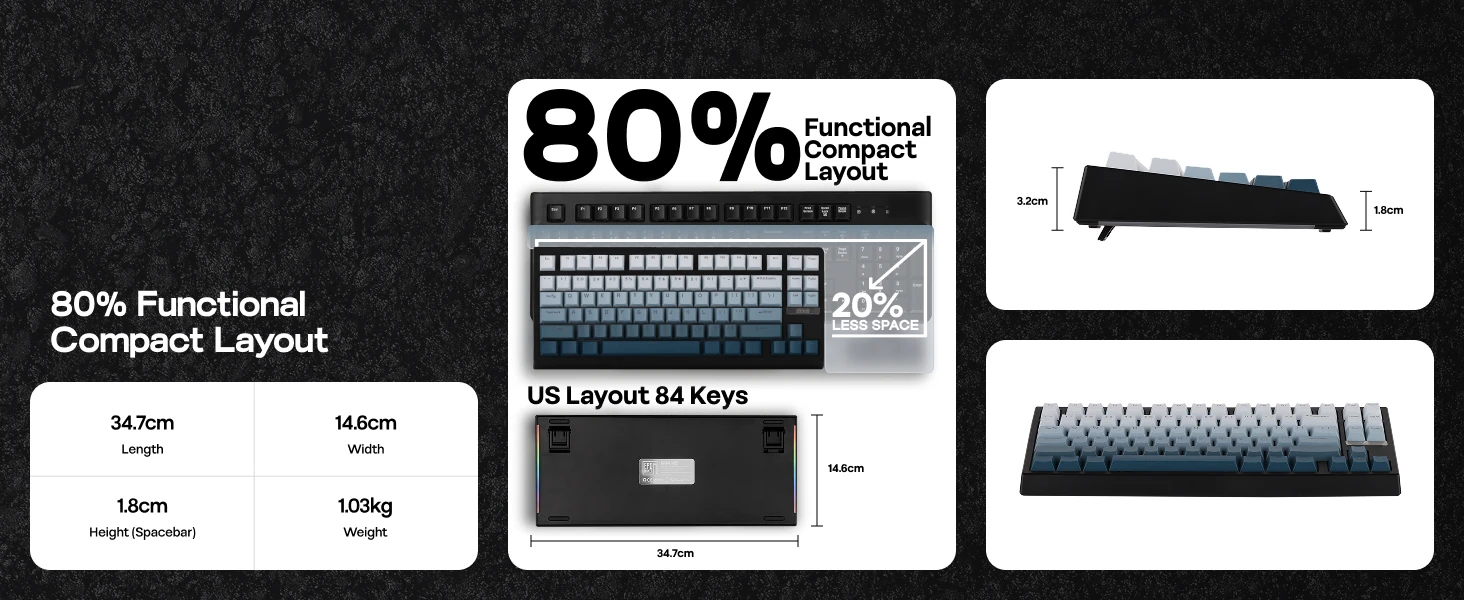

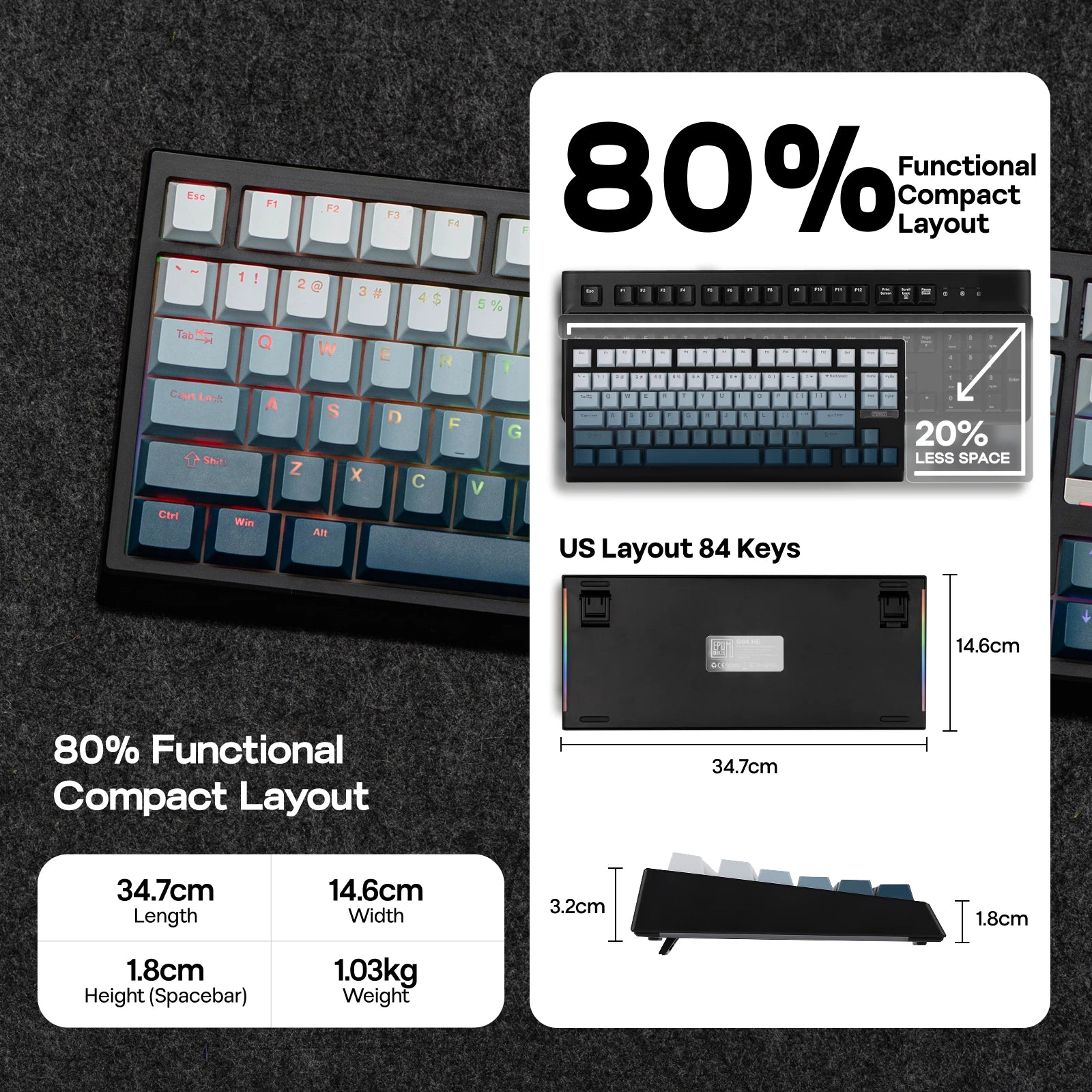

Keyboard Dimensions: 34.7cm in Length, 14.6cm in Width, and 4.2cm in Height
Keyboard Weight: 1kg
Front Height: 1.85cm

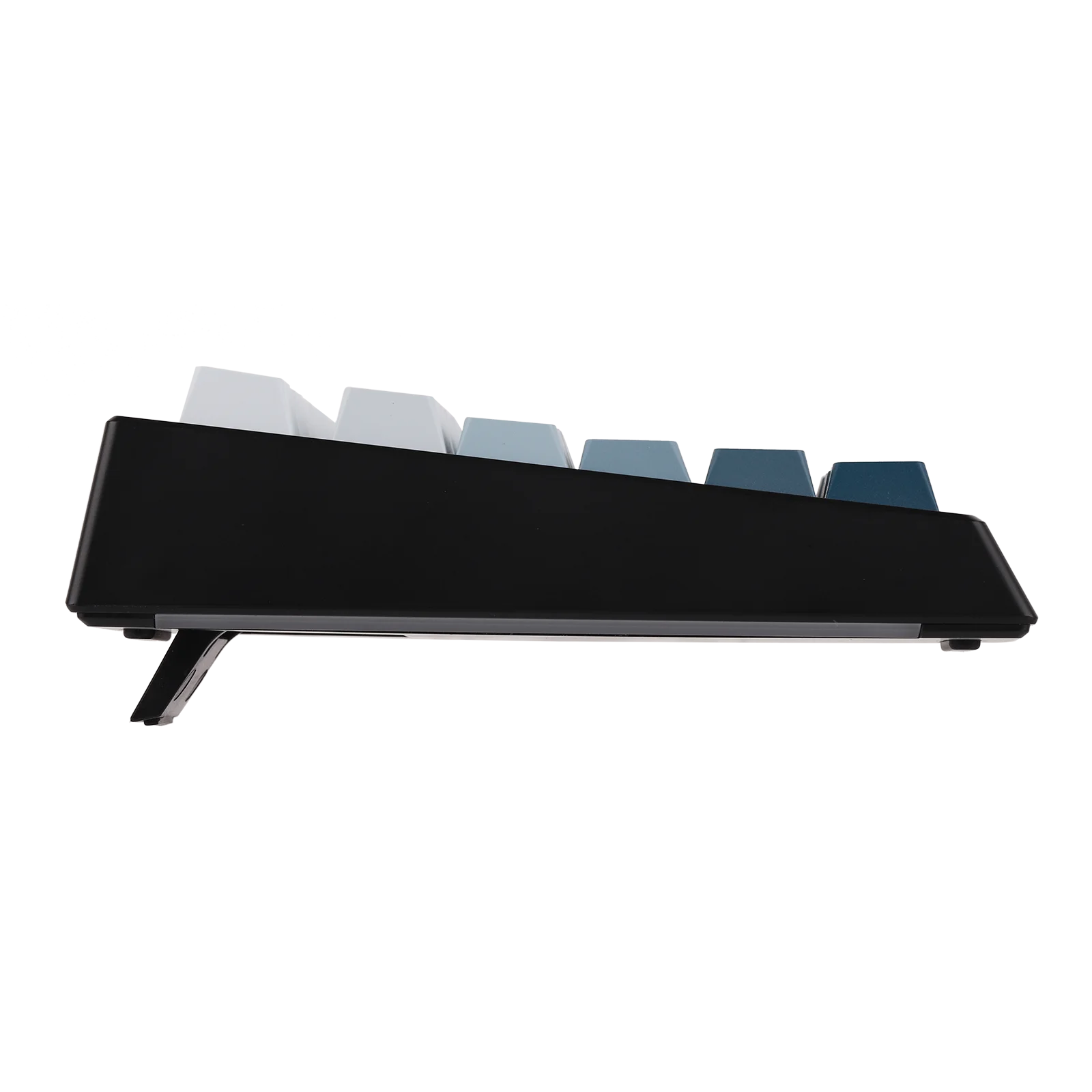

Typing Angle: 6 degrees, 8 degrees and 10.5 degrees
Case Material: ABS Plastic
Plate Material: PC Plate
Flex-Cut: Flex-Cut
Stabilizers: Plate-Mounted Stabilizer
Mounting Structure: Gasket-Mount

Sound Dampening: PORON Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, PORON Switch Socket Pad, and Bottom Silicone

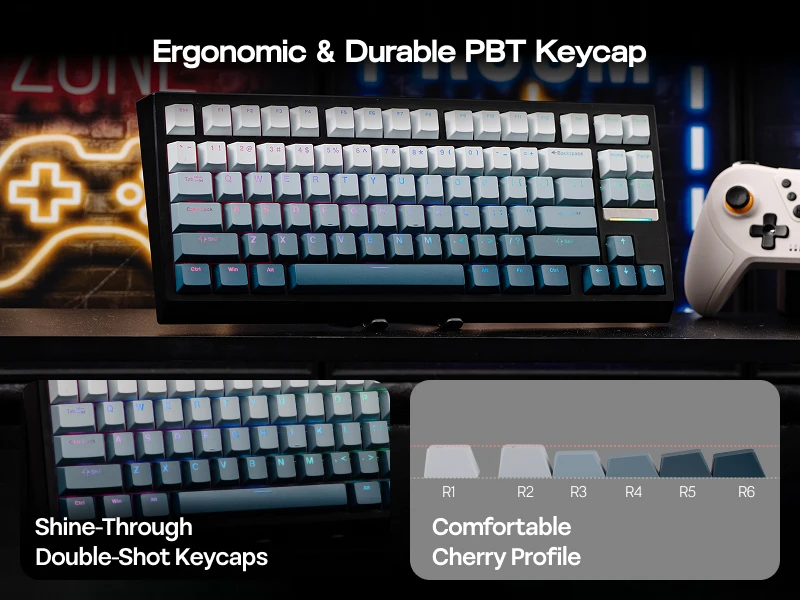

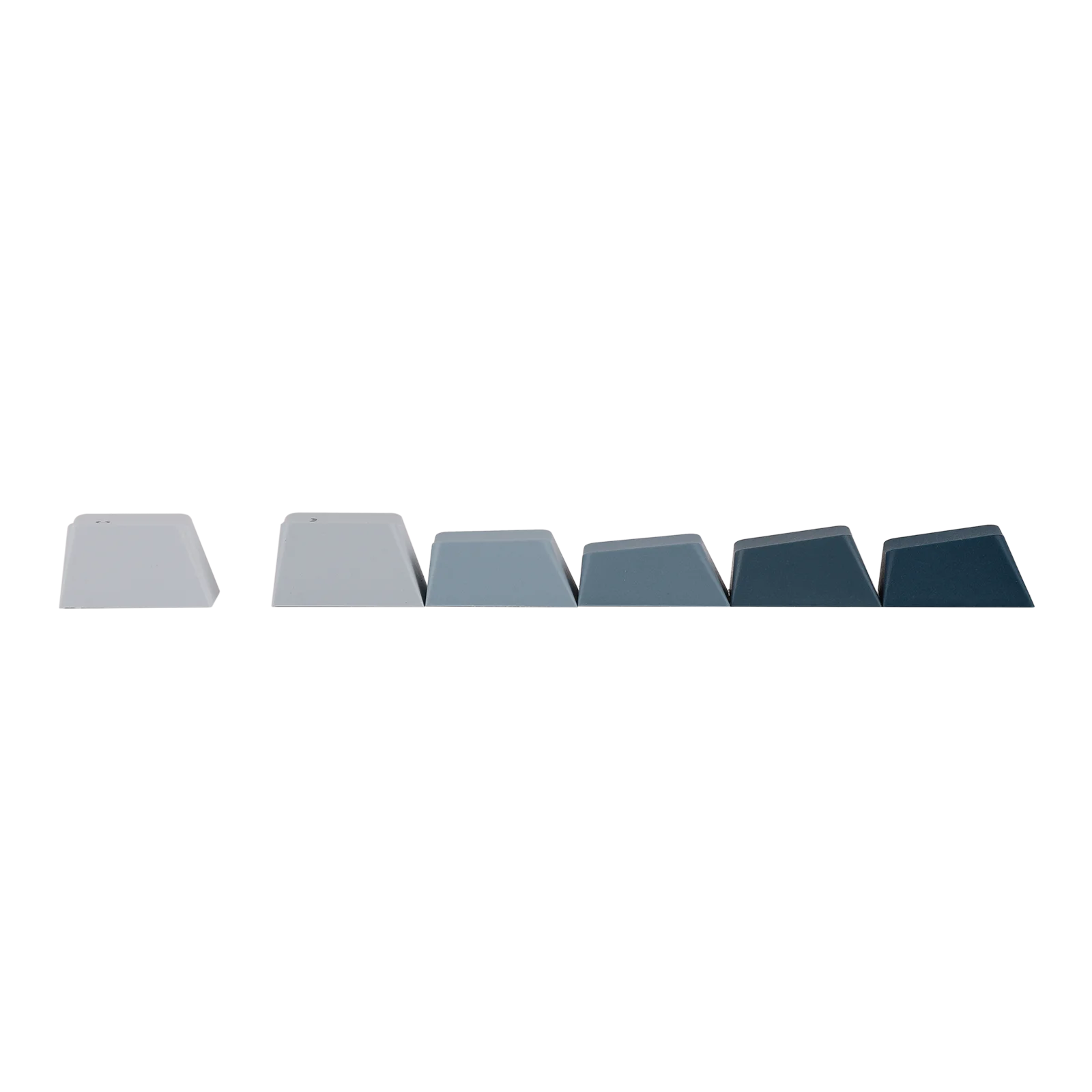

Keycaps Profile: Cherry Profile
Keycaps Material: PBT Plastic
Keycaps Manufacturing Technique: Double-Shot
Switch: North-Facing Magnetic Switch

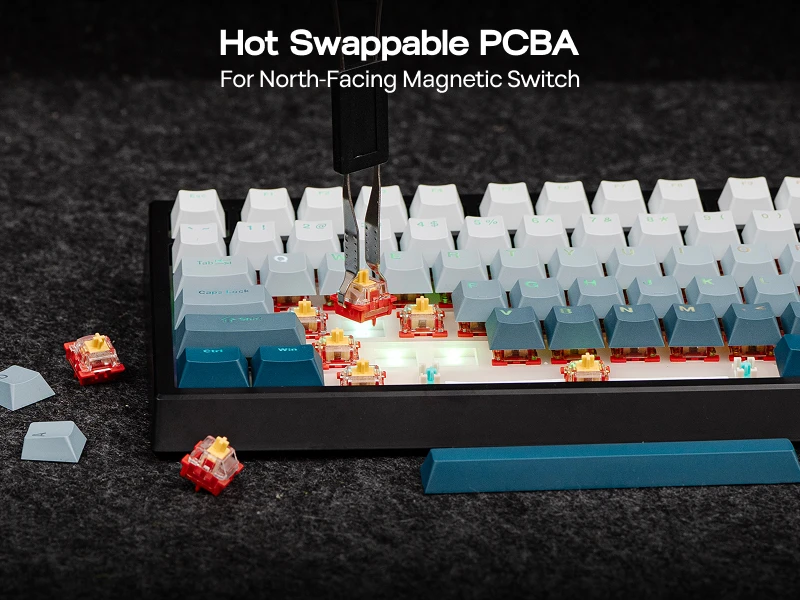

Hot swappable: Yes, with North-Facing Magnetic Switches
RGB: Yes, with per-key north-facing RGB LEDs
Polling Rate: 8,000hz in 2.4G and Cable Mode, and 125hz in Bluetooth Mode.

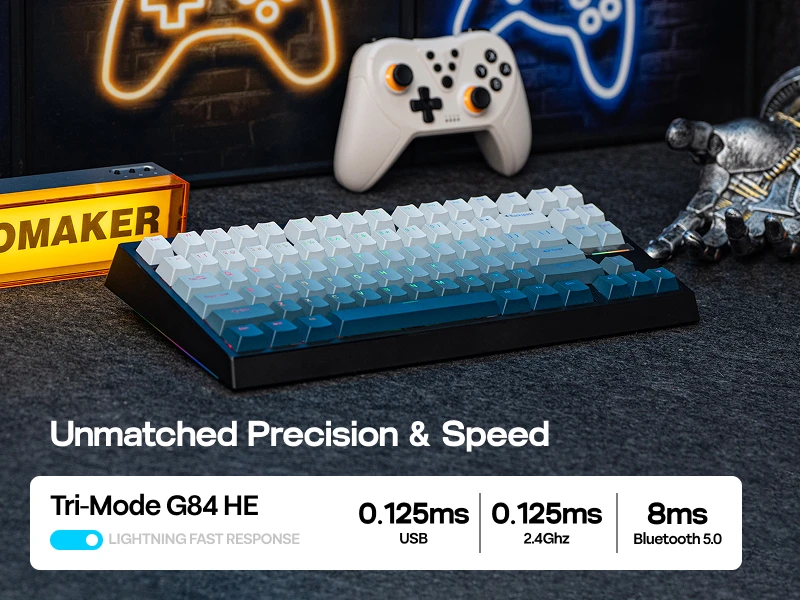

Latency: 0.125ms in Wired and 2.4Ghz Wireless Mode, and 8ms in Bluetooth Mode.
Anti-Ghosting: Yes, G84 HE Magnetic Keyboard support NKRO and software calibration for anti-ghosting typing.

Programming Software: Yes, G84 HE Hall Effect Keyboard supports EPOMAKER software for customization on WIN and Mac devices.
Hall Effect Dead Zone: Zero Dead Zone
Hall Effect Snap Key (SOCD): Yes

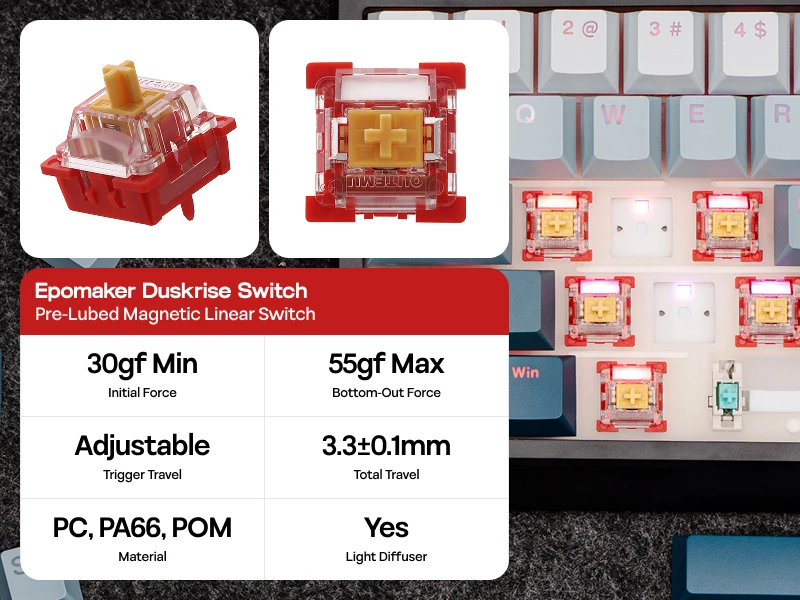

Specifications for Epomaker Duskrise Magnetic Switch:

Switch Type: Hall Effect Magnetic Switch
Initial Force: 30gf Min
Bottom-out Force: 55gf Max
Initial Magnetic Flux (if PCB=1.6mm): 95±15GS
Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS
Trigger Travel: Adjustable per 0.01mm, from 0.1mm to 3.3mm
Total Travel: 3.3±0.1mm
Top Case: PC, Transparent
Bottom Case: PA66, Red
Stem/Kone: POM, Yellow
Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser

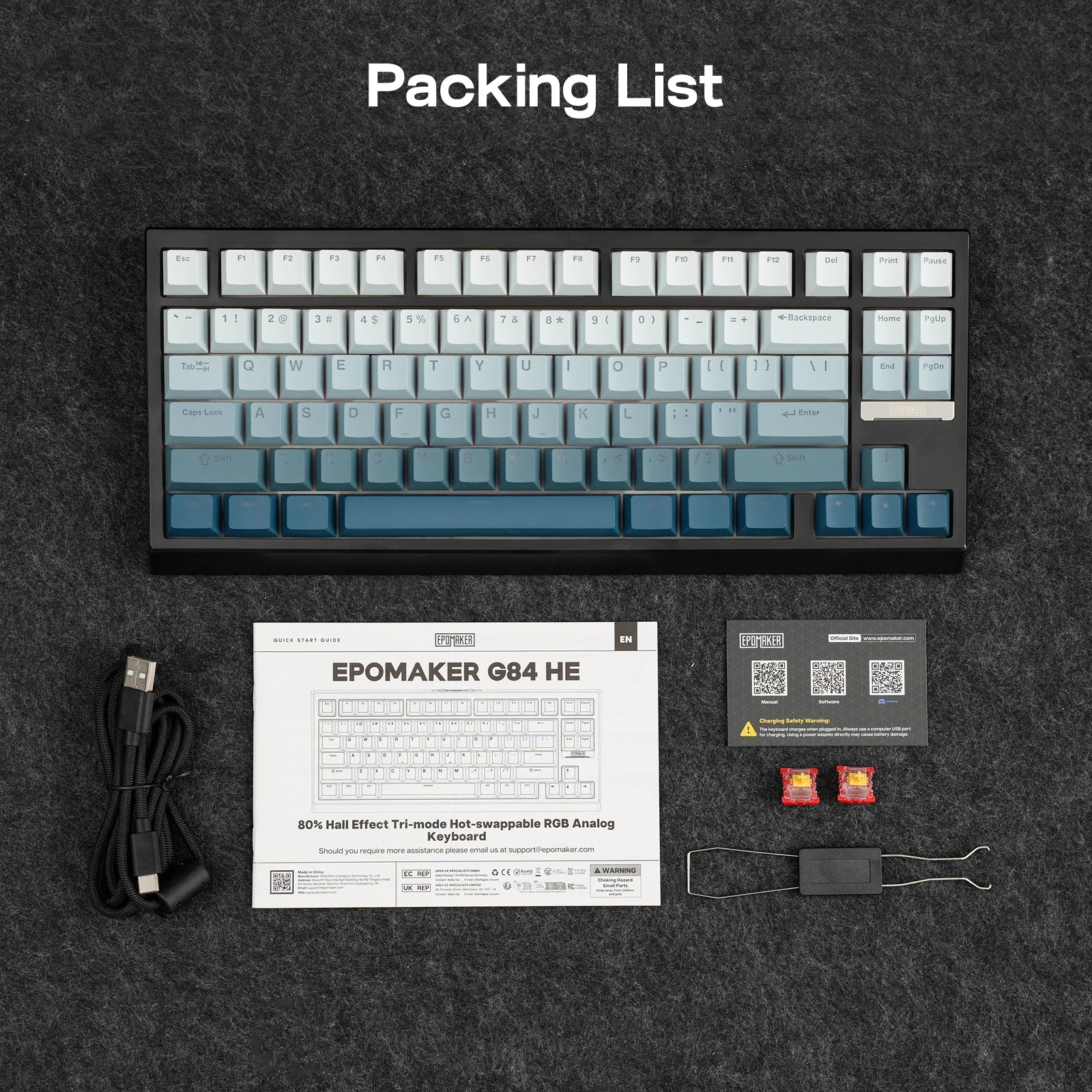

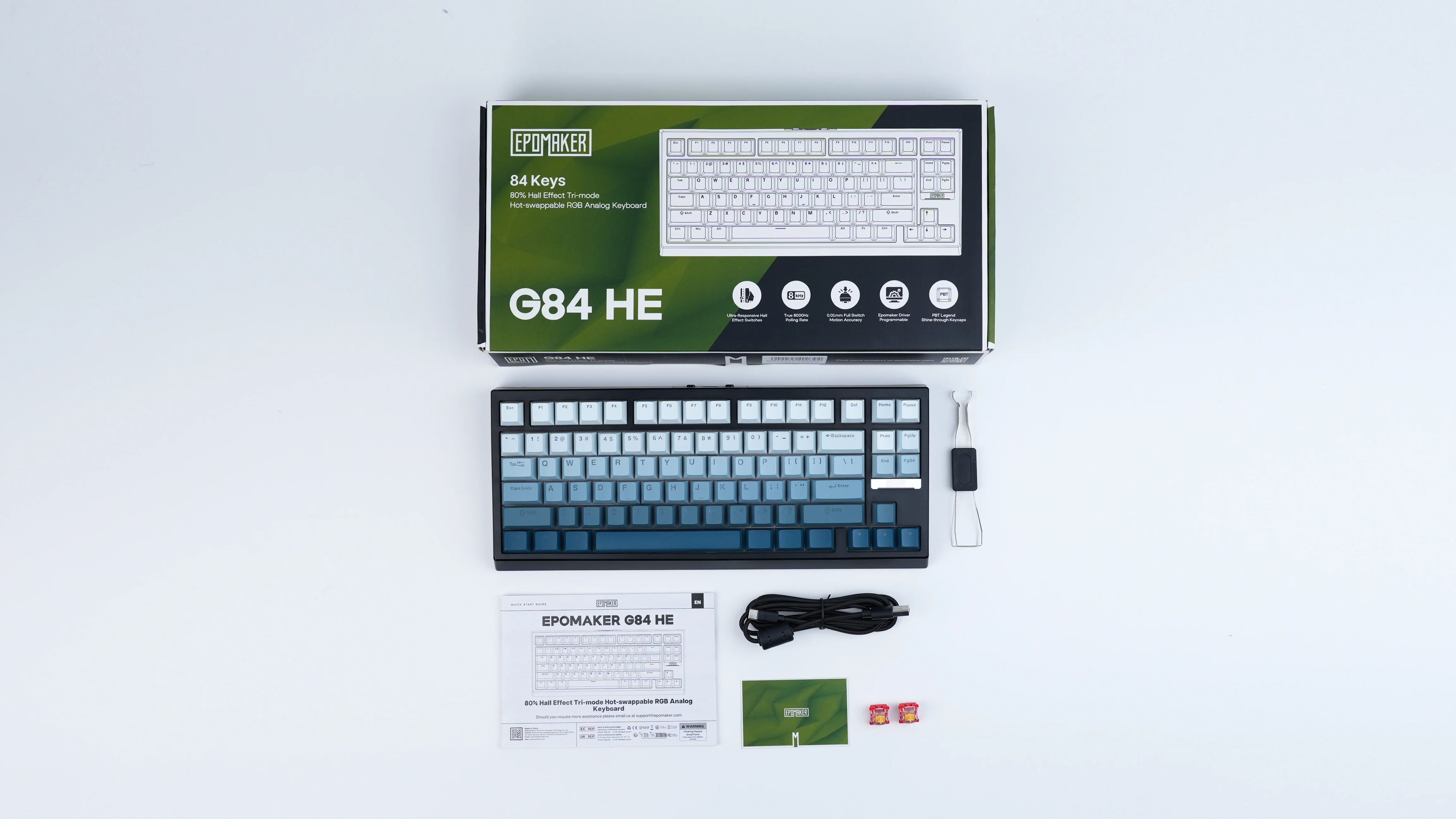

Package Content:

1* G84 HE 75% Mechanical Keyboard
1* Multilingual Manual
1* Detachable USB A-to-C Cable & 1* 2.4Ghz Wireless Dongle
1* Switch Puller
3* Extra Switches
